Anti Static Clear OPP ESD Tape

Min Order Quantity: 1000 Square Meters
Supply Ability: 15000 Square Meters
Port: Shenzhen, China
Payment Terms: T/T, L/C, Paypal, Western Union
Delivery Time: About 10-15 days

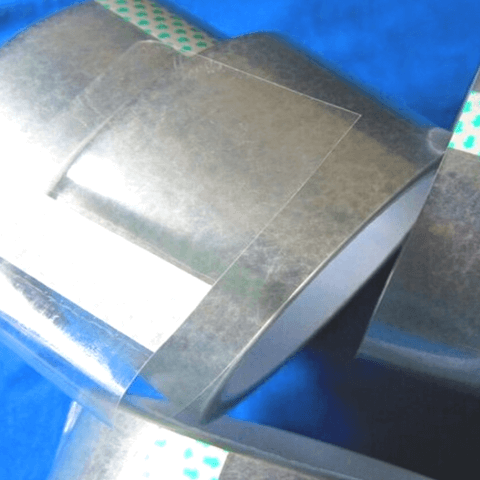

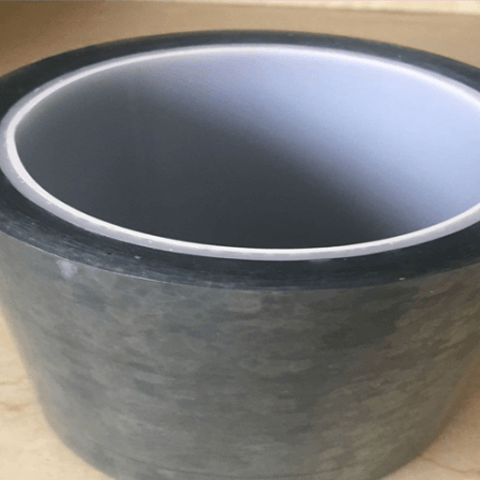

Anti Static Clear OPP ESD Tape

ESD OPP Tape is used Clear OPP as materials, it is used the high-performance adhesive tape for anti-static function. Both side ESD treated, it is recommended to use in the cleanroom and ESD function required places.

Features:

  • Made from durable OPP material
  • Reliable ESD protection.

Packaging Details:

Export standard packing for Anti Static Clear OPP ESD Tape. (If customers have special requirements, we also can make accordingly.)



Note: All data contained in this document base on china standard test method, they are average values, they should not be used for a specific purpose. All statements, technical information, and recommendations contained are base upon tests that we believe are reliable, but we strongly recommend clients should do their own tests and decide whether the product is fit for a particular purpose or the method of application.

These product properties are suggestive and all products can be customized or converted to fit specific application requirements. Please contact us to discuss your unique application needs.

Our Factory Competitive Advantages:

Well Competitive Prices and High Quality Control.
Prompt Delivery.
Earth-friendly Products.
In a Variety of Design.
Small Order Acceptable.
OEM Accepted.

Roll Size: 3″ paper or plastic core;tape width: 2mm -1200mm; standard width: 1200mm, standard length: 50M.

OEM Size: Special length, thickness or combinations can be supplied per customer’s request. Products can be supplied in roll, tape, sheets or shapes per customer’s request. Only you provide the CAD drawing, we can die cut any size for you.

Shelf Life: To obtain best performance, use this product within 12 months from date of delivery and store under normal conditions of 60 ºC to 80ºF (16 ºC to 27ºC) and 40 to 60% R.H. in the original carton.

  • Packing tape for sensitive semiconductor devices ideal for glass and acrylics in cleanroom where conductivity is needed.
  • EMI shielding, sealing ESD bags or ESD containers and grounding of shelving units.
  • To make resin surface of tools used in cleanrooms conductive.
Model Xinst1301C
Film Material Clear OPP
Color Clear Color with ESD
Thickness(µm) 60µm (±0.5µm)
Width(mm) MAX. 960mm
Length(M) 33m
Inner diameter of core(mm) 76 (Tolerance: ±2mm) / PE CORE
Rupture Elongation factor(%) 60 over
Tensile strength(Kg/cm²) 4.5kg/cm
Adhesive force(g/25mm) 600g (Tolerance: ±50)
Dielectrical Breakdown Less than 50 Volts
Heat resistance temperature 120°C
Surface Resitance(Ω) 1010 adhesive side/ 1012 reverse side
